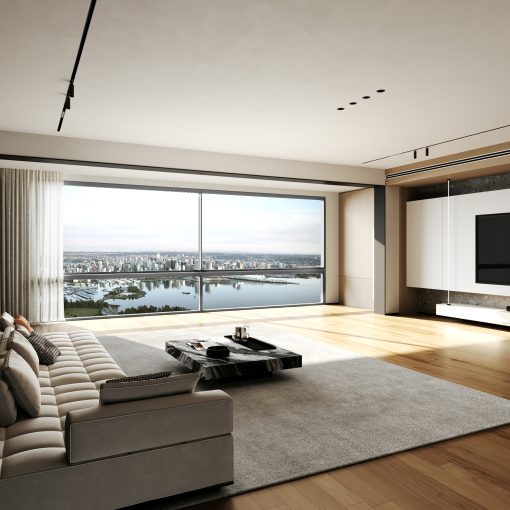

WPY 140 PANORAMIC SLIM FRAME SLIDING WINDOW
THERMAL BREAK SLIDING WINDOW SYSTEM WITH FLYSCREEN- Profile thickness
- Overall Thinckness : 137mm (Without Handrail), 192mm (With Handrail )
- Aluminum Alloy Thickness : Track: 2.0mm, Frame/ Sash: 1.8mm
- Specification
- Sash Width Range: 450-2000mm (Maximum Flyscreen Sash Width: 1500mm)
- Sash Height Range: 1000-1800mm

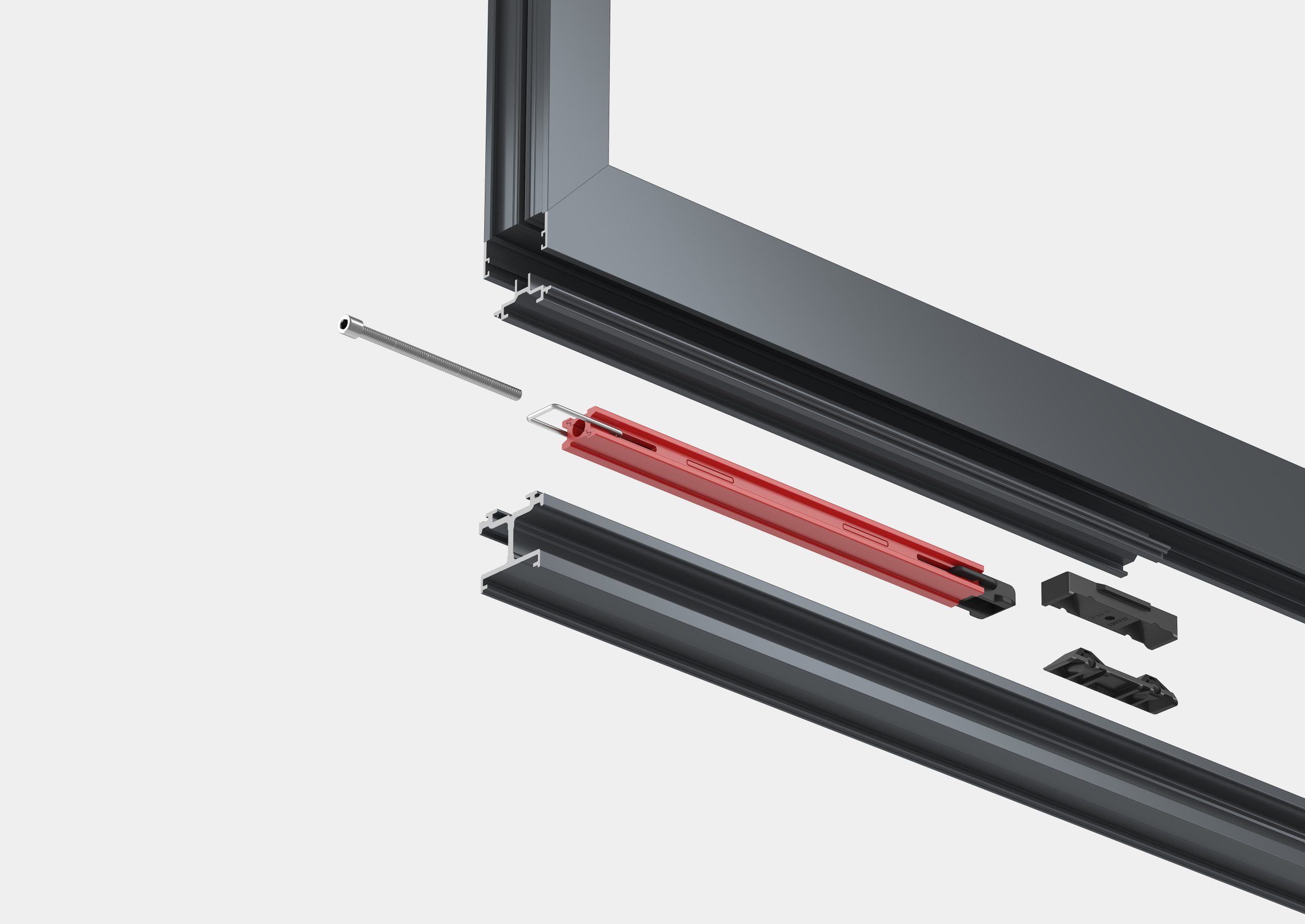

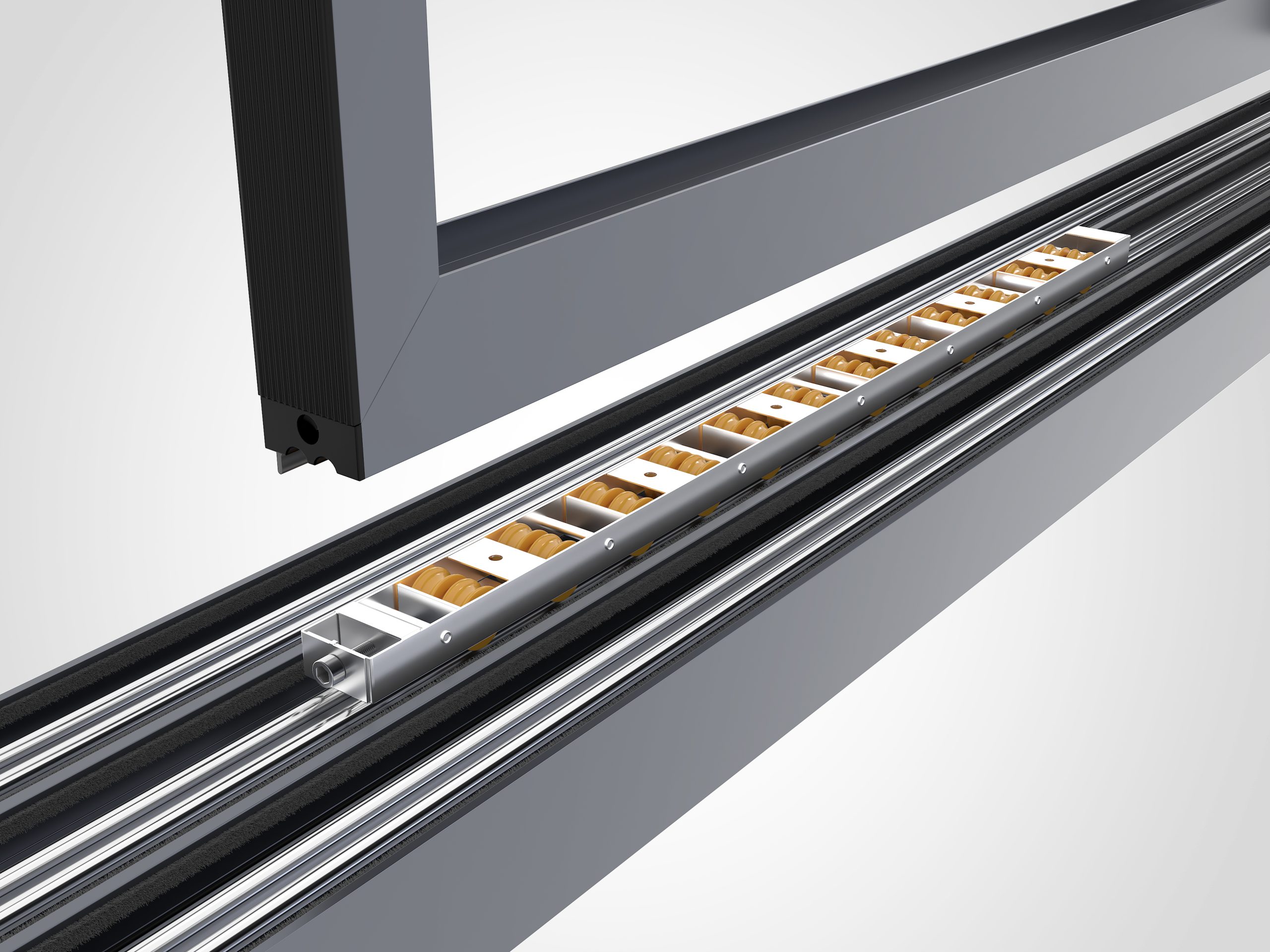

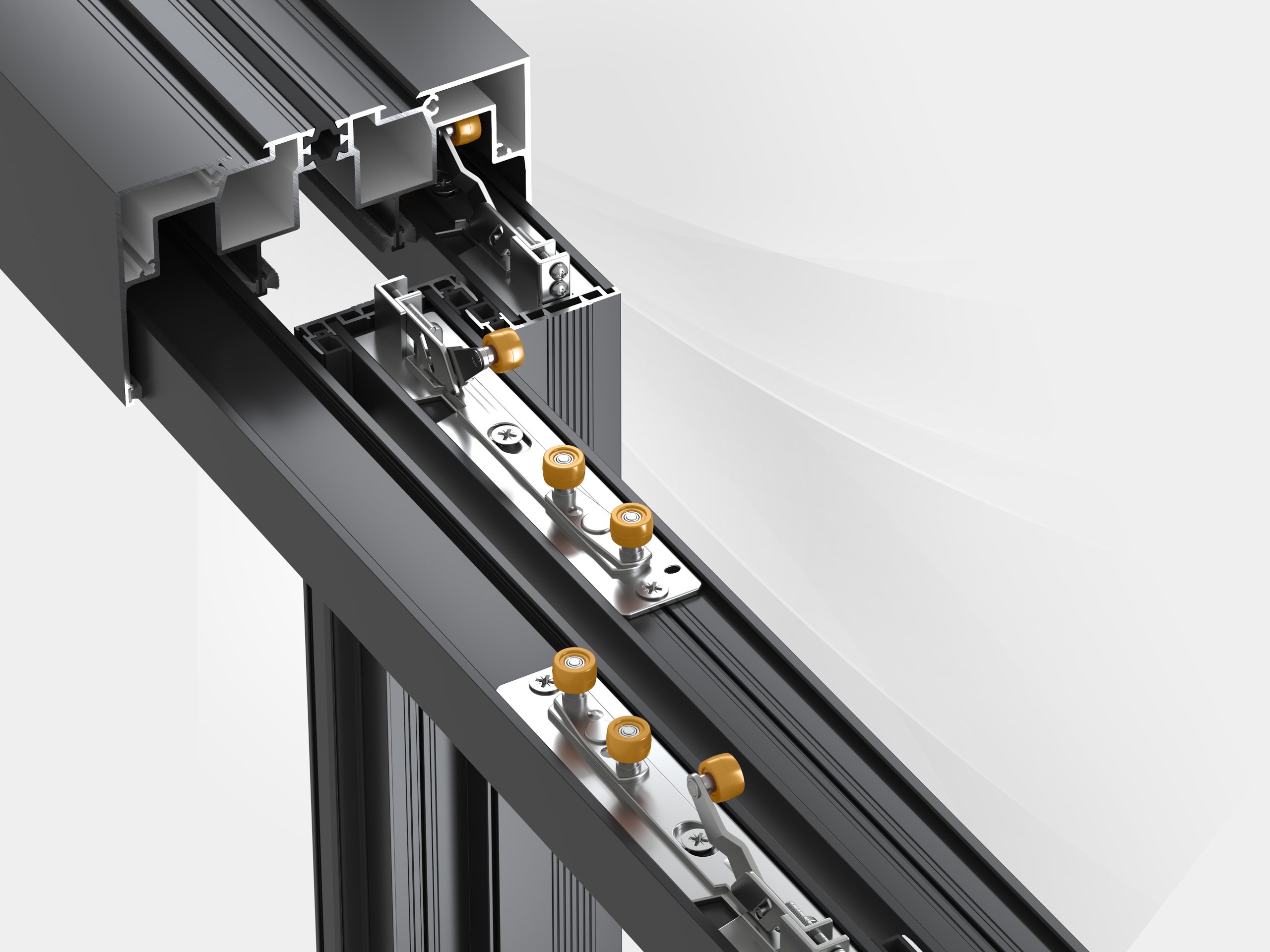

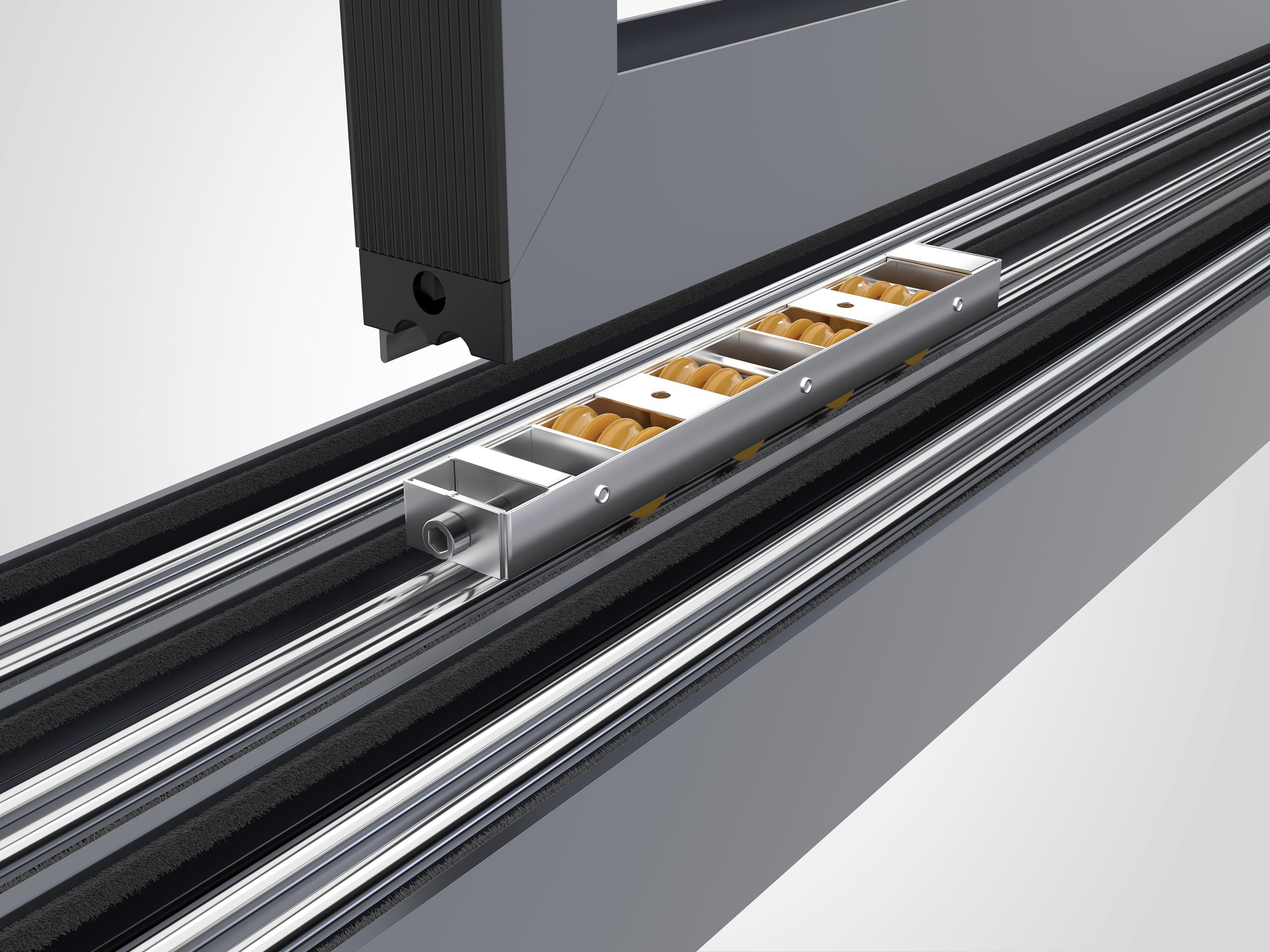

- Features: Panoramic view, Edge-embeded design , Slim middle frame, Stepped drainage structure，Double rails Track，8 Wheels Bottom roller，Anti-swing top roller, Invisible recessed handle with children lock
- Thermal Break Material
- Insulation Strip: PA66+GF25 high-quality Nylon insulation strip
- 14.8mm
- Gasket Strip: High-performance EPDM foam composite sealing strip,standard soft and hard composite co-extruded isobaric rubber strip
- Mesh Fan
- Anti-rust high-transparency steel screen
- AkzoNobel spray coating
- 0.3mm wire, 14*14 mesh
- Glass
- Default Configuration:
- 5mm Single Silver LOW-E + 20Ar+ 5mm DGU Planitherm Toughened
- More optional glazing informaton please contact us
- Open means
- Sliding:double track 2 panels without screen, double track 4 panels without screen, Triple track 2 panels with 1 screen, Triple track 4 panels with 2 screen,
- Basic param eters
HARDWARE PARTS
OPTIONAL COLOR
- #4b4545
- #6f5e56
- #8c8d88
